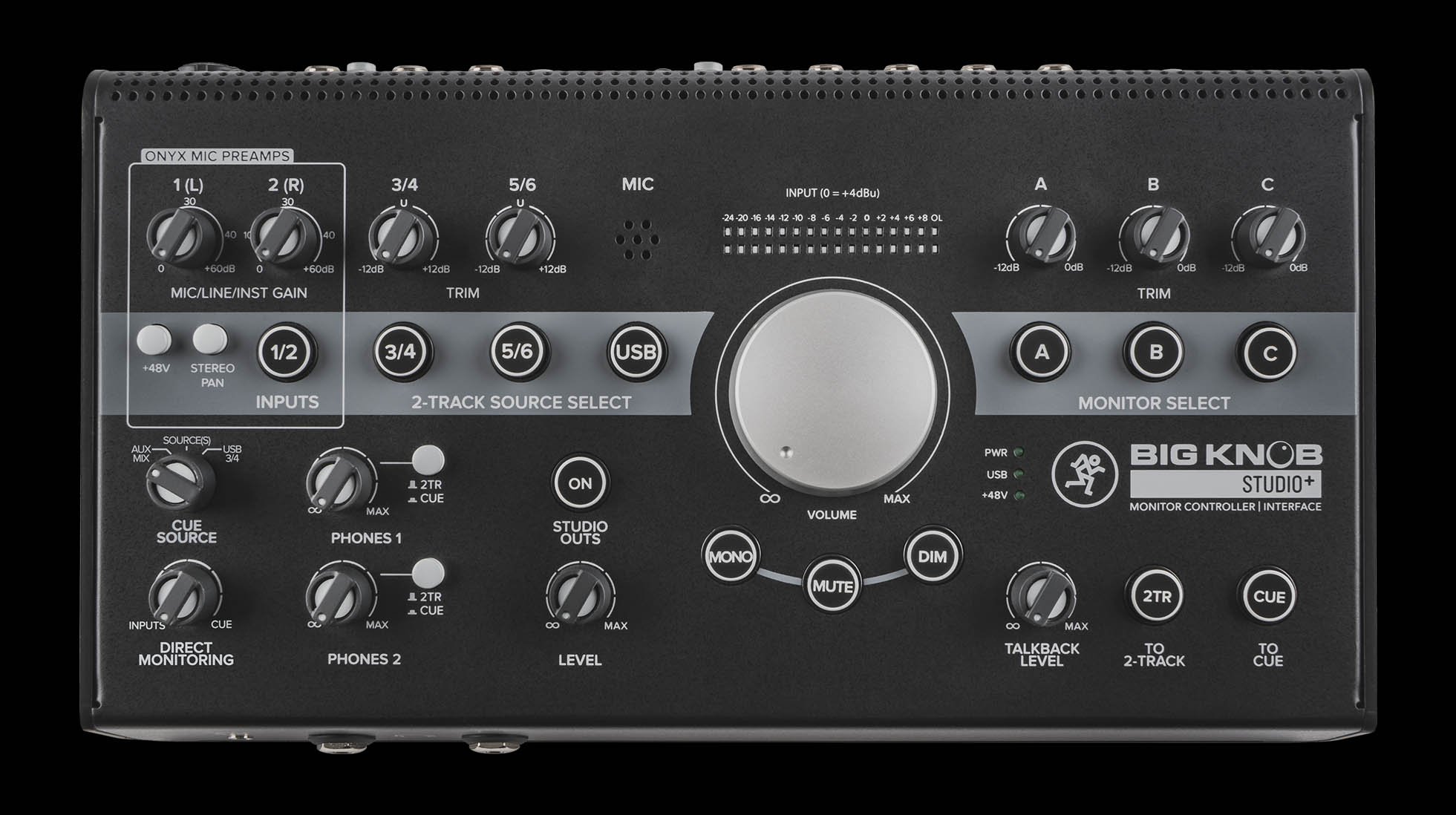

Big Knob Studio+

Monitor Controller & Interface

Big Knob Studio+

The Mackie Big Knob Studio+ is the centerpiece in project studios, live broadcast setups, pro studios and more. With easy input and monitor switching, award-winning Onyx™ mic preamps, high-resolution USB recording and playback, and a dedicated amp-driven output for additional headphones, this Big Knob goes to eleven.

Find a dealer Find a dealer
THE BIGGEST KNOB

THE BIGGEST KNOB

When you’re looking to level up your recording studio, reach for the Mackie Big Knob Studio+. With a built-in 192kHz / 24-bit recording interface, dual Mackie Onyx preamps and flexible talkback options, the Mackie Big Knob Studio+ is an all-in-one desktop interface and monitor control solution that’ll supercharge your workflow with industry-leading Mackie performance.

Product Videos & Tutorials

Waveform oem™ DAW

Waveform OEM™ DAW

Waveform OEM is a multi award-winning workstation, featuring powerful and creative tools to inspire the modern musician. Unlike typical ‘Lite’ versions, it does not impose any restrictions – you get unlimited track count, powerful features, compatibility with all popular plug-ins and efficient performance on MacOS ®, Windows®, and Linux ® operating systems. Learn More

DAW Essentials Collection™

Introducing a collection of 16 contemporary FX plug-ins for use with any DAW. These plug-ins utilize the very latest algorithms and coding techniques to deliver extraordinary sound quality in an extremely efficient package, allowing the plug-ins to be used liberally across a wide range of native computer systems. Learn More

  • Equaliser, Compressor, Reverber8, Delay Studio, Stereo Delay, Tape Delay, Crossover, Limiter, Gate / Expander, Ducker, Flanger, Crusher, Chorus, Bus Compressor, Phaser, and Auto Filter

Full features

Professional source and monitor selection

  • Choose between 4 sources and 3 monitor pairs
  • Classic Big Knob volume control
  • Independent trim on all sources and monitor outs
  • Mono, mute and dim functions

Flexible 2x4 USB recording interface

  • Two boutique-quality Onyx mic preamps including phantom power for condenser microphones
  • High-resolution 192kHz / 24-bit recording and playback
  • Cue mix allows controlled blending of direct inputs with other signals for zero-latency recording
  • Choice of recording paths provide flexibility for applications like podcasting

Comprehensive feature set for professional studios

  • Flexible source connections including convenient front panel 1/8” input for your smartphone
  • Dual headphone outs with independent level control and both USB and Aux source options
  • Flexible talkback options including external mic input and footswitch control
  • Dedicated amp-driven studio output perfect for headphone distribution system
  • 16-segment high-resolution input source metering

Sturdy “Built-Like-A-Tank” design

Compatible with all major DAWs on both Mac and Windows

Includes Waveform OEM recording software

Product comparison

Product
Source Monitor I/O
USB I/O
Resolution
Mono/Mute/Dim
Dedicated Studio Out
Headphone Outs
Up Your Game?

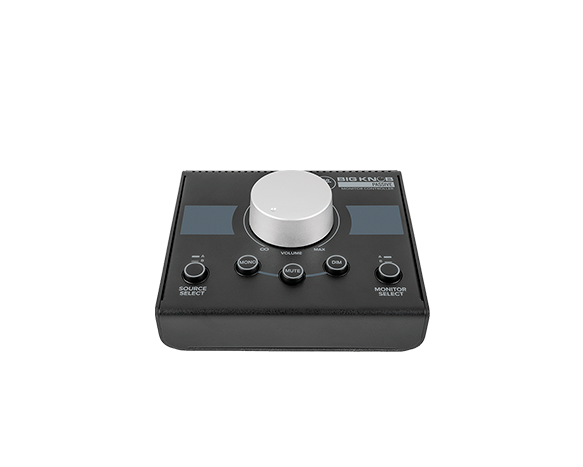

Big Knob Passive
Big Knob Studio
Big Knob Studio+
Big Knob Passive
Big Knob Studio
Big Knob Studio+
2x2
3x2
4x3
N/A
2x2
2x4
N/A
192 kHz / 24-bit
192 kHz / 24-bit
Yes
Yes
Yes
No
No
Yes
No
2 - dedicated
2 - dedicated
Of course
You know it
For sure


Downloads & resources
Owner's Manual
Mackie USB Driver v4.47.0 Install Instructions
Owner's Manual (German)
Mackie USB Driver v4.47.0 ASIO is a registered trademark of Steinberg Media Technologies GmbH
